Information and Guest Centre in Danyang

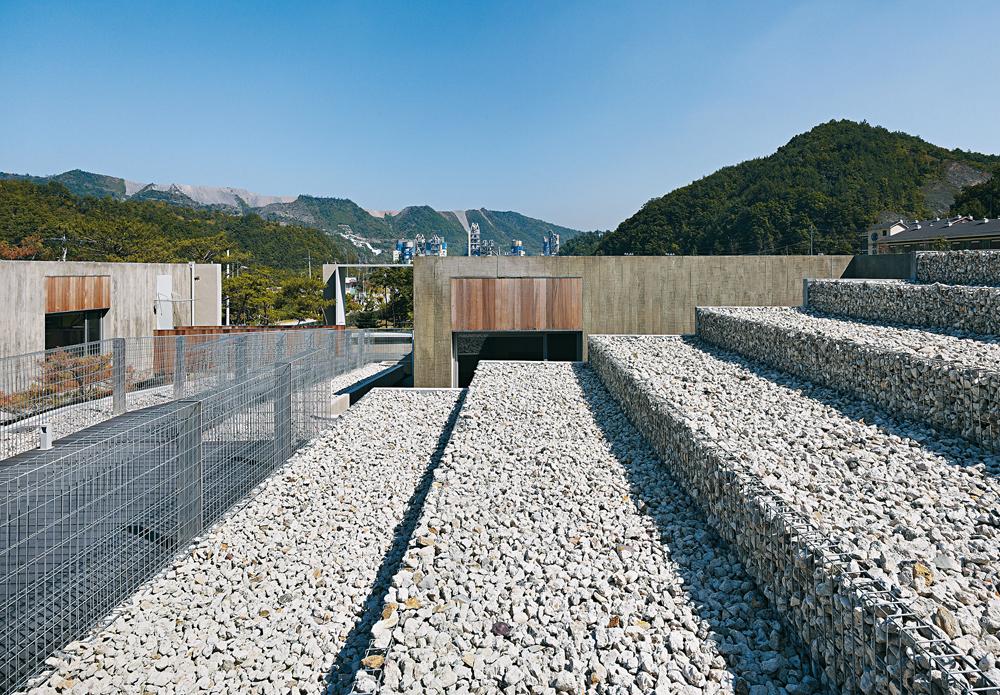

The facades of this South Korean information centre for recycling concrete show three examples of this technology. The precast elements to the east face were inspired by the texture of tree trunks and have a series of irregular folds. Polyethylene fabric was laid over PVC tubes of various diameters, with boarded shuttering at the sides, and the concrete was poured into the roughly 1 × 7 m forms. The weight of the concrete causes the plastic sheeting to move and creates shear wrinkles. The south facade and the roof, in contrast, were constructed with crushed concrete in gabions and provide protection against the sun. In the other facades, exposed concrete is contrasted with planar timber elements.

Information and Guest Centre in Danyang
© Kim Yong-Kwan

The facades of this South Korean information centre for recycling concrete show three examples of this technology. The precast elements to the east face were inspired by the texture of tree trunks and have a series of irregular folds. Polyethylene fabric was laid over PVC tubes of various diameters, with boarded shuttering at the sides, and the concrete was poured into the roughly 1 × 7 m forms. The weight of the concrete causes the plastic sheeting to move and creates shear wrinkles. The south facade and the roof, in contrast, were constructed with crushed concrete in gabions and provide protection against the sun. In the other facades, exposed concrete is contrasted with planar timber elements.

Architecture
BCHO Architects
Location
Pyongdong-ri Maepo-eup, Chungbuk, Danyang-gun (KR)

Gallery

Summary

Issue
12/2010 Architecture + Recycling
Author
-
Source
DETAIL
Location
South Korea, Chungbuk, Danyang-gun
Year of construction
2009
Year of completion
2009
Architecture
BCHO Architects

Participants & manufacturers

Architecture
BCHO Architects
Floor coverings
Join K&C Co. Ltd.

Categories

Magazine
Architecture + Recycling
Facade
Concrete
Load bearing structure
Reinforced concrete
