Profile Glass Facade without Corners

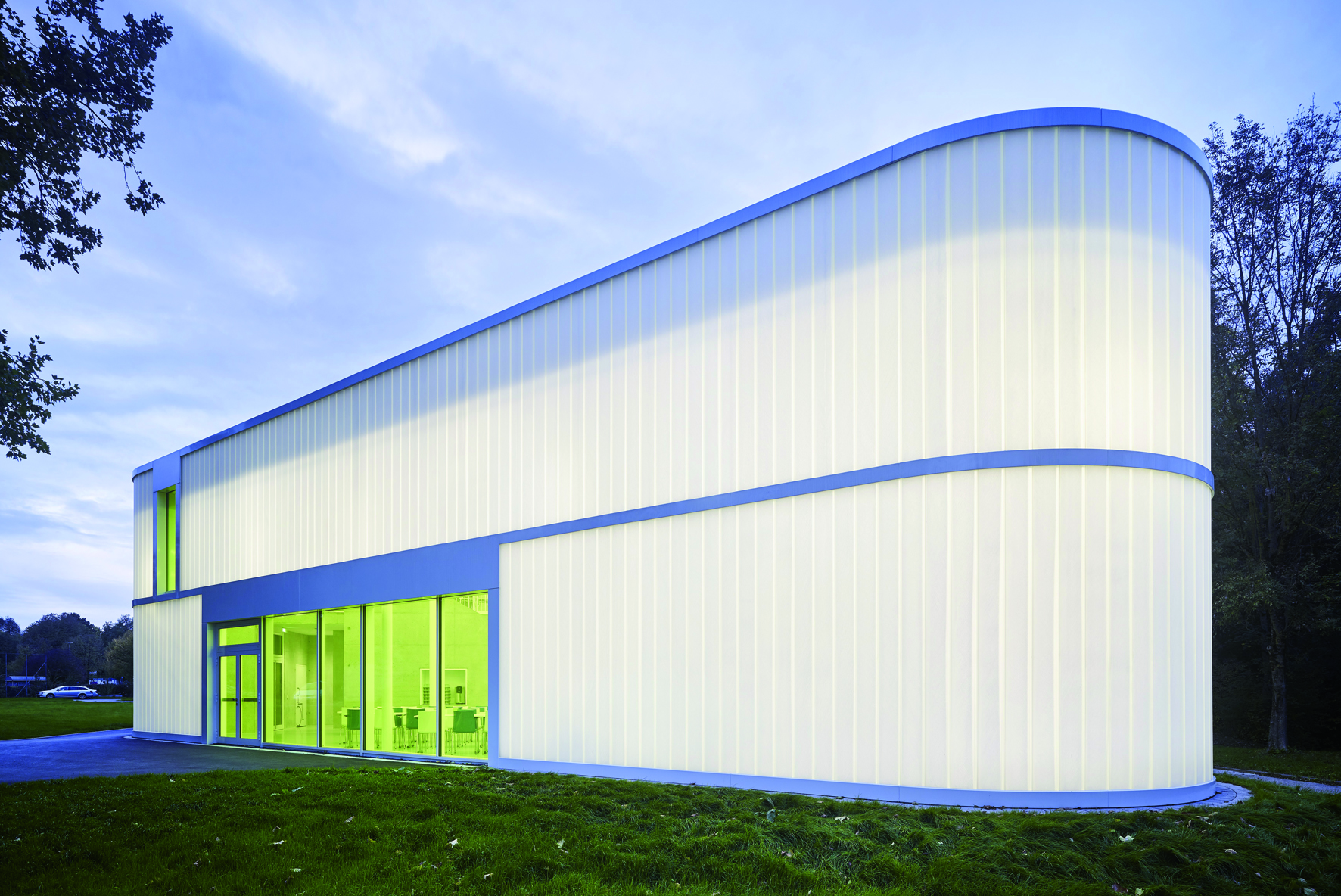

520 m2 of the translucent thermal insulation TIMax GL-Plus F and the solar protection insert TIMax LT from Wacotech have been installed in the profile glass facade of the canteen of the Erich Kästner Secondary Modern School in Steinheim an der Murr, planned by the Stuttgart planning office Zoll Architekten Stadtplaner. The thermal insulation reduces the heat transmission coefficient of the double-shell profiled glass facade to Ug = 1.2 W/(m2K) and allows maximum daylight into the interior of the canteen with good light diffusion. The translucent glass fabric attached to the inside of the inner glass pane as a solar protection insert creates an even appearance on the inside of the facade.
