01.12.2021

Variable Parking Concept

Foto: Wöhr

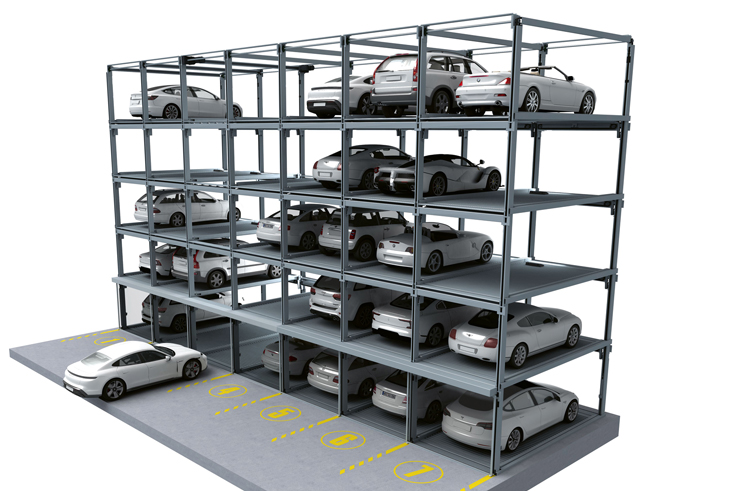

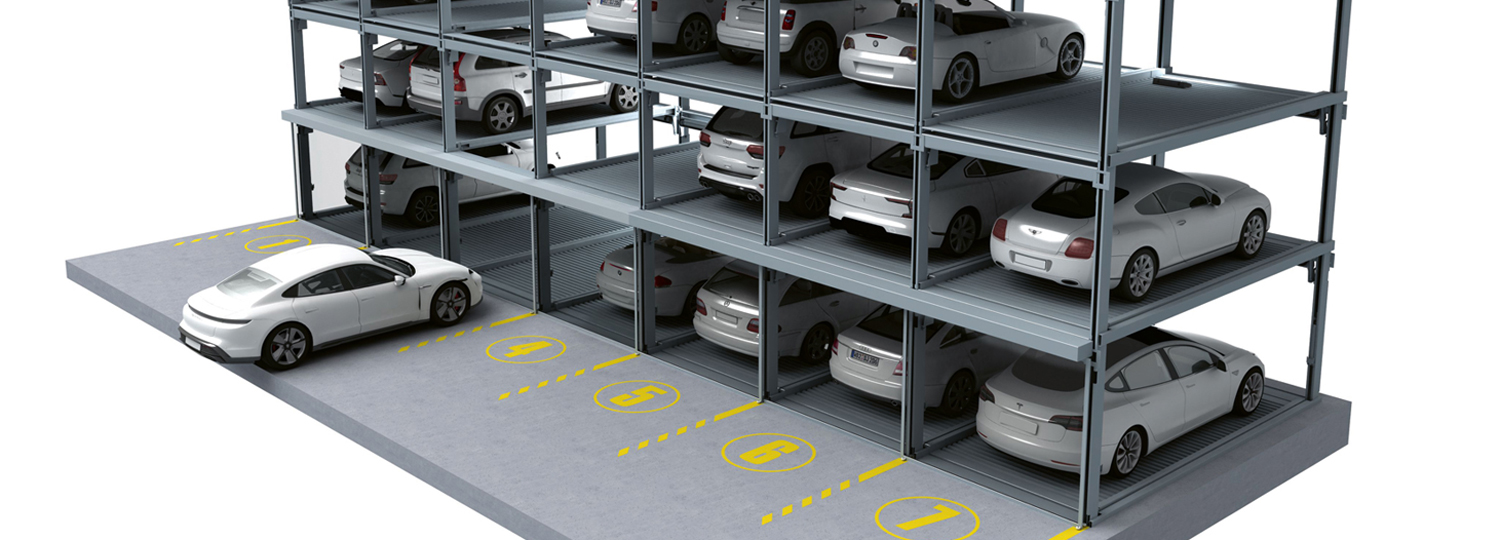

The new Combiparker 560 from Wöhr offers up to five parking levels, which can be flexibly realised four levels downwards or four levels upwards, starting from the entry level. In the underground garage of a new building with a floor height of 2.50 m, up to four levels can be accessed beneath it. The system allows for three platform widths (2.50 m, 2.60 m, 2.70 m) and eight vehicle heights – from 1.75 to 2.10 m at 5 cm intervals. The platforms can be loaded up to a maximum weight of 3 t. Two to a maximum of ten grids (modules) next to each other allow up to 750 variants.

The surface of the spaces differs in terms of construction and material. The standard is the Smart Profile 2.0, with the Classic and Alu-Prime profiles available as options. All the parking spaces can be equipped with charging boxes for electric vehicles. They can be driven on horizontally and are moved horizontally or vertically in such a way that each can be moved independently of the others to the entry level. Each grid has an electric, automatically-­opening sliding gate.

For more information, see:
www.woehr.de
