Static Planning Simplified

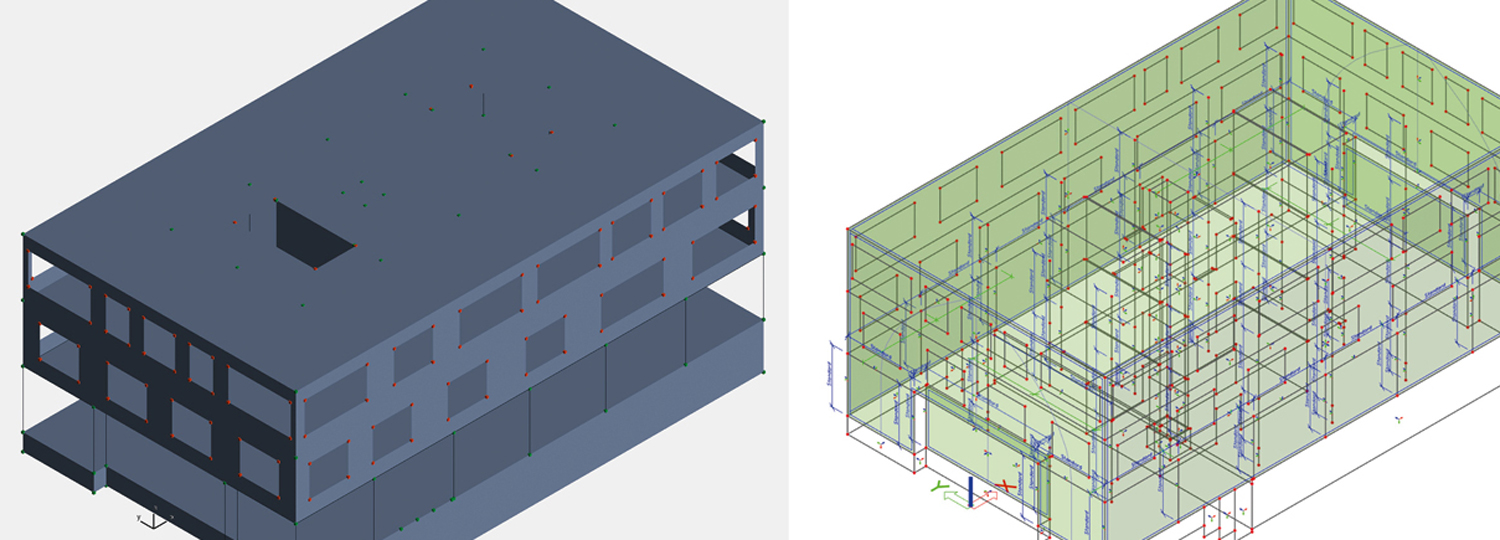

In Archicad 24 structural designers and architects work together on a project early on. The structural analysis model, seen here in the middle, can be derived from the Archicad 24 model ­(image left). It contains only the data relevant to the structural ­engineer, who imports it directly into their structural analysis ­program via the SAF format for further calculations (image right). Using the teamwork function they perform the first check and note any issues directly on the component.

For more information, see:
www.graphisoft.com
