Production Hall Made of Wood

The main load-bearing structure of the building for a metal processing company in Schwäbisch Hall, which was planned and ­realised by Zero Architektur and timber construction company Schaffitzel Holzindustrie, consists of 30.5-m-long gabled roof ­trusses with a straight lower chord and a full-surface roof ­panel made of glued laminated timber. It is supported by pin-ended ­columns made of glued laminated timber and fixed steel-concrete prefabricated columns. These are fitted with crane ­runway brackets and are ­designed for a crane runway ­with ­­a lifting capacity of 3.2 t. ­

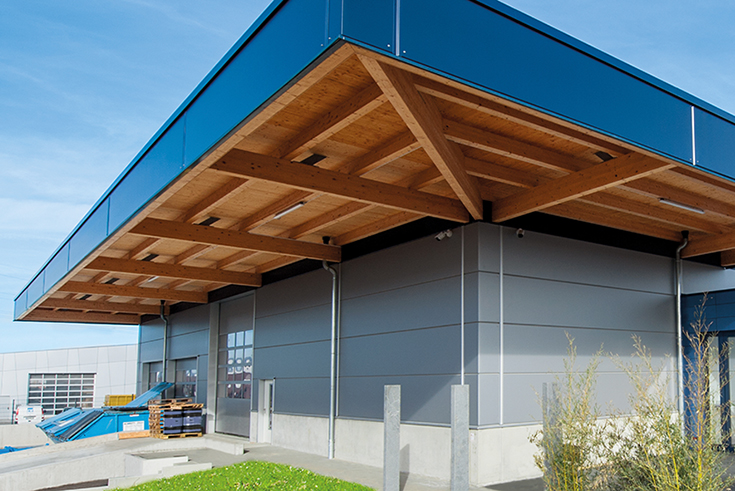

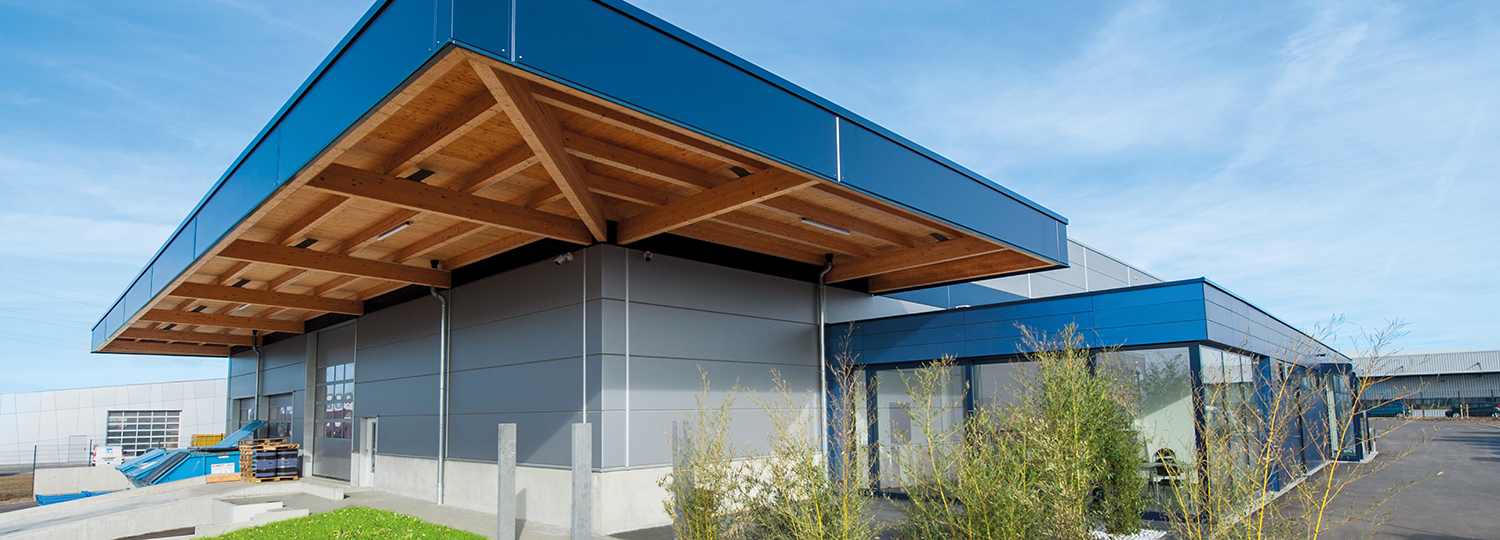

The 220-m2 cantilevered canopy ­consists of cantilever beams and purlins made of glued laminated timber, which for aesthetic reasons were provided with spruce three-layer panels. The canopy apron merges smoothly into the facade and extends around the entire building.
